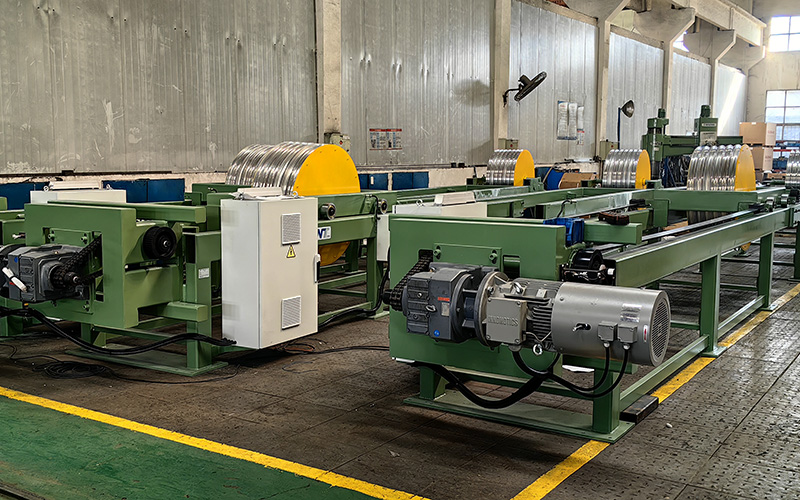

HV, EHV CCV Line Accumulator
This equipment is a horizontal moveable wire storage device.
The purpose of the catenary production line is to continuously produce when wire drums change, avoid stopping, and ensure product quality. It is a cross-linked One of the necessary equipment on the production line.
Technical Parameter:
| No. | Main Technical | Data |
| 1 | Storage wheel diameter | 2000 mm |
| 2 | Maximum conductor diameter | 1000 mm2 |
| 3 | Storage capacity | 120 m |
| 4 | Number of moving wheels | 4 |
| 5 | Installation length | 15Meter |
| 6 | Maximum design line speed | Aluminum alloy |
| 7 | The linear speed is infinitely variable and adjusted by a variable | 25 m/min |
| 8 | frequency drive and an AC motor. | 1-25m/min |
Machine Video:
